| Menşe yeri: | Çin | Marka adı: | NBSANMINSE |
|---|---|---|---|
| Model numarası: | 706 DN25 |
|
Detay Bilgi |
|||
| kod: | 706 DN25 | Boyut: | A 90 B 20 C 92 D 152 D1 65 D2 85 4-D 4-φ14 |
|---|---|---|---|
| Titreşmeyen çalışma basıncı: | 2.5Mpa | Doymuş Buhar: | 0.8Mpa |
| Çalışma Ortamı: | Su, Gaz, Petrol | ||
Ürün Açıklaması

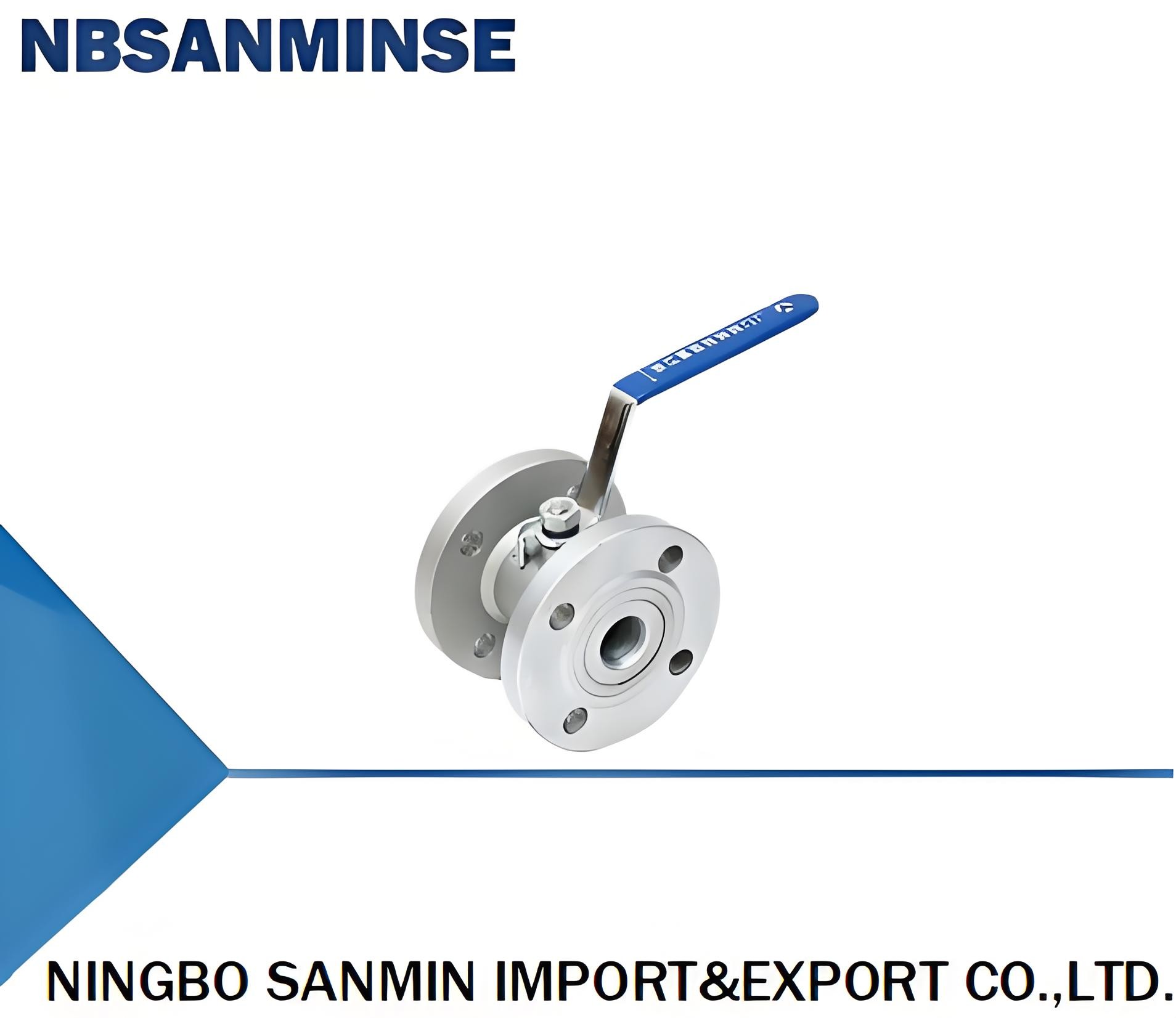

Generally installed on boilers, between the water level alarm and the water level gauge, the total length of the ball valve is only 90mm. The 706 steel ball valve has no pulsation working pressure: normal temperature water, gas, oil: 2.5MPa; Saturated steam: 0.8MPaDNABCDD1D24-d2590209215265854- φ 14 steel body ball valve. Currently, the most commonly used main materials in China are mainly divided into four categories: ordinary carbon steel (WCB, WCC, etc.), ordinary low-temperature steel (LCB, LC2, LC3, etc.), and high-temperature steel (WC6, WC9, ZG15Cr1MoG, etc.)
| 706 | Non pulsating working pressure: room temperature water, gas, oil: 2.5MPa; Saturated steam: 0.8MPa | ||||||
| DN | A | B | C | D | D1 | D2 | 4-d |
| 25 | 90 | 20 | 92 | 152 | 65 | 85 | 4-φ14 |
