NBSANMINSE PC58 G NPT 1/4 UF7/16 M12X1.25 Bir anahtarda iki basınç ayar noktası ile hava ve suda çift basınç anahtarları
İlgili kişi : Ina Chen
Telefon numarası : 0086-15168536055
Naber : +8615168536055
| Menşe yeri: | Çin | Marka adı: | NBSANMINSE |
|---|---|---|---|
| Model numarası: | SMF17 |
|
Detay Bilgi |
|||
| Model: | SMF17 | Boyut: | NPT 1-4 NPT 3-8 adaptörü |
|---|---|---|---|
| Sertifika: | ce | Özellikleri: | Sağlam boyalı çelik |
| Malzeme: | Plastik | ||
Ürün Açıklaması

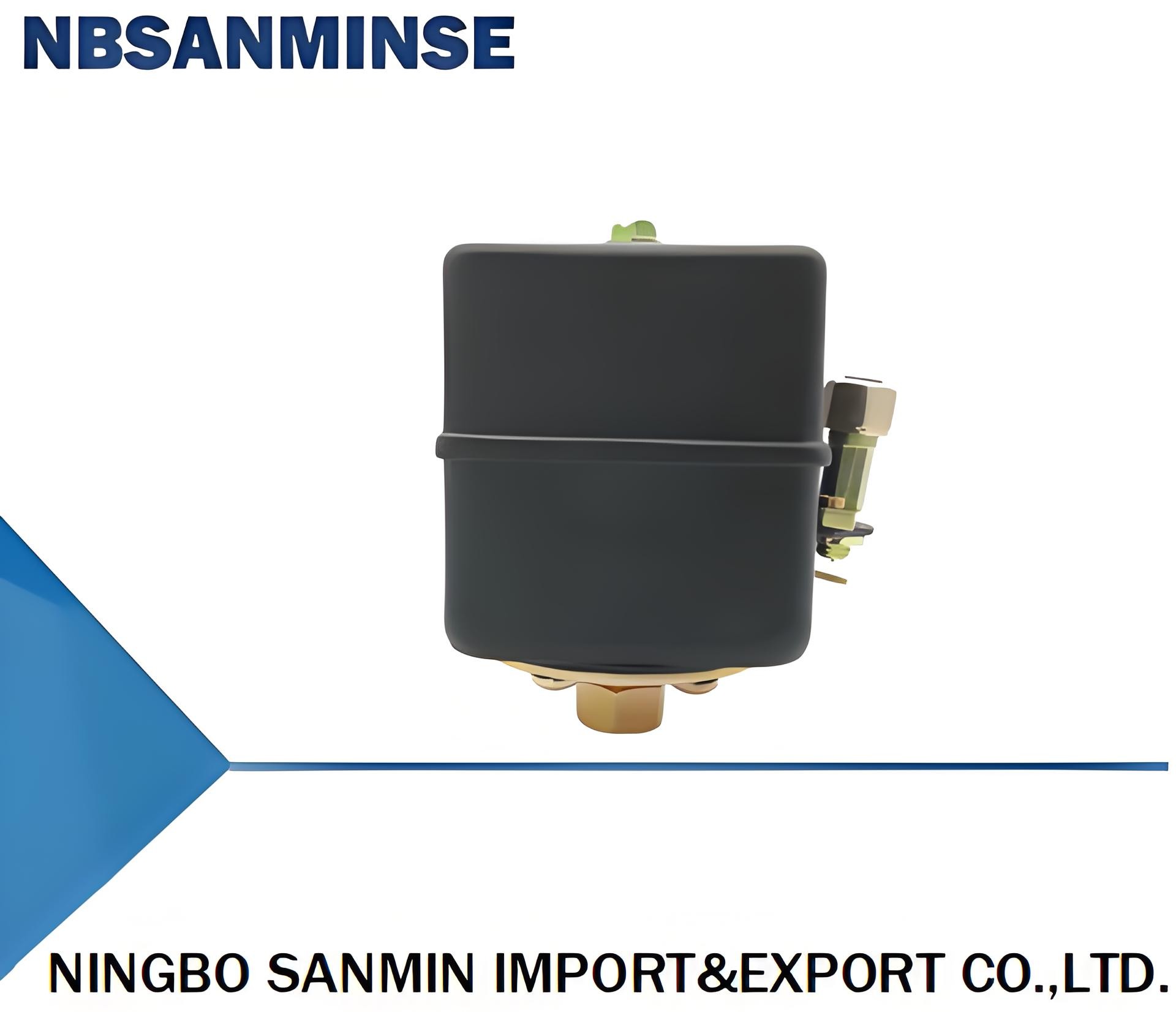

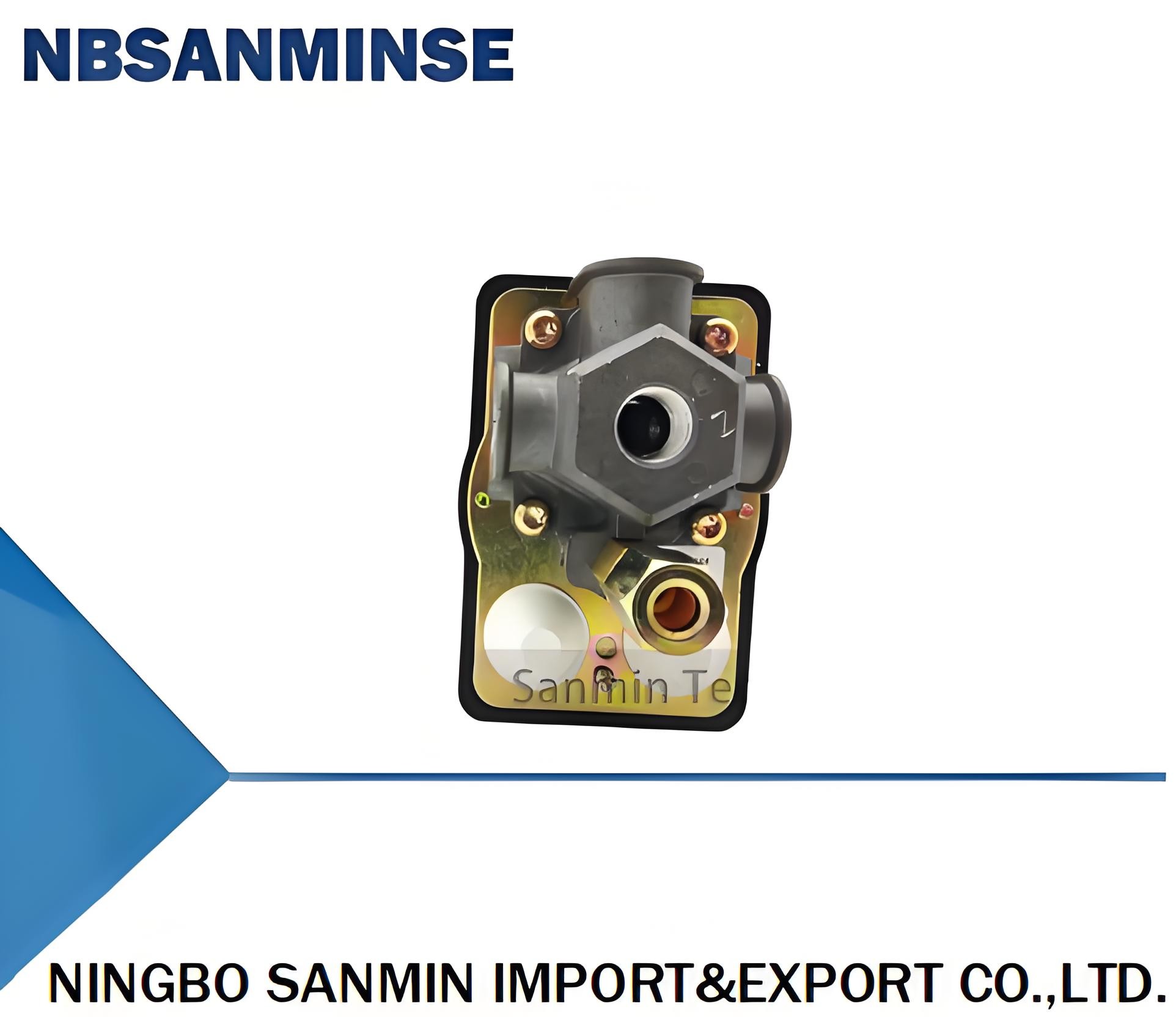

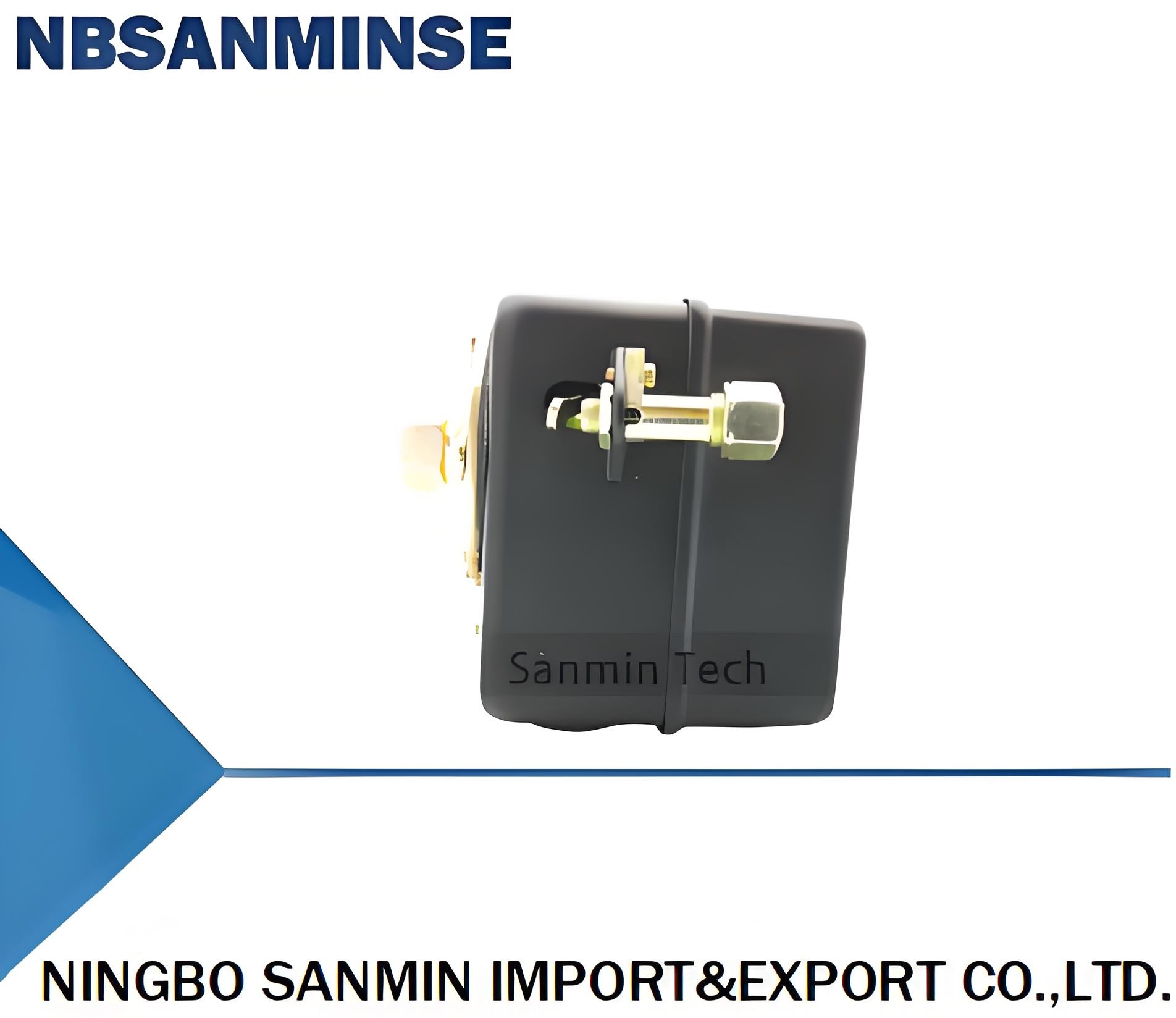

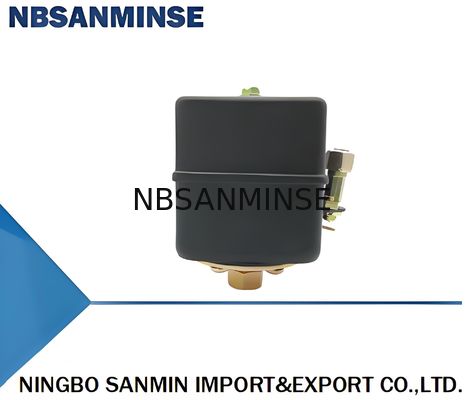

The rugged SMF17 pressure switch is designed for the demanding requirements of lager, heavy duty commercial air compressors (up to 250 psi). The sturdy painted steel case and cover resists the harsh conditions encountered in industrial applications. This style is also available with an unloader valve to prevent the compressor from starting under load.
Sturdy Stamped Steel Case & Cover Visible Contact
No Drift Pressure Setting Captive Cover nut
Ample Wiring Room 2 Ground Screw
Easy to Adjust Automatic Unloader Valve Available
Pulsation Dampener Standard 5HP Heavy Duty Rating
250 PSI Max
|
MODEL
|
Min ON (Cut-In)PSI
|
Max Off
(Cut-Out) PSI
|
Differential
PSI
|
Factory Setting PSI
|
Electrical Rating
|
Pipe Fittings
|
Contact Arrangement
|
|
|
120VAC
|
240VAC
|
|||||||
|
SMF17
|
40
|
250
|
25-60
|
145-175
|
24A
|
12A
|
1/4", 3/8" Male or Female NPT
|
NC
|
|
SMF17-S
|
15
|
60
|
7-15
|
30-40
|
24A
|
12A
|
1/4", 3/8" Male or Female NPT
|
NC
|
