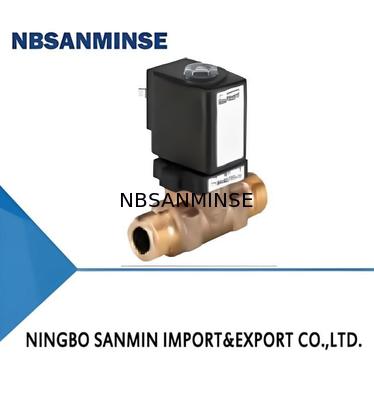

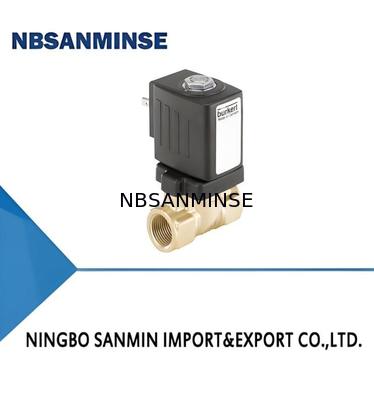

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve

Büyük resim :  Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve

Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: NBSANMINSE
Sertifika: ISO9001
Model numarası: 6213
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Kutusu
Teslim süresi: 5-30 gün
Ödeme koşulları: L/C, T/T
Yetenek temini: 10000 pcs
İletişim

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve

Açıklama
Malzeme: Çelik Valf gövdesi: Pirinç
Bobin boyutu: Hjkom Güç: Solenoid, pnömatik, hidrolik, 2x6.5w (12VDC), 2x7w (110VAC)
Çalışma sıcaklığı: -5 ~ 80 ℃ için NBR ve -5 ~ 150 ℃ için viton, -15 ~ 150 ° C Viton için, EPDM, -29 ℃ ~ +200 ℃ Bağlantı: Dişi iplik, iplik (npt, flanş ucu, bsp, bspt)
Gerilim: DC12V DC24V AC24V AC110V AC220V AC380V, AC, ±%10, DC Çalışma sıcaklığı: 5-50 Degree, 5 ~ 50 ° C
Vurgulamak:

2/2-way Diaphragm Valve

,

Servo-assisted Solenoid Valve

,

Steel Material Brass Solenoid Valve

Can be combined with Type description
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 0 Type 2518
Cable plug,
form A according to DIN EN 175301-803
The 6213 EV valve is a servo-assisted diaphragm valve of the S.EV series.
The diaphragm spring coupling supports the opening process of the valve.
In its standard version, the valve is suitable for use in liquids. A minimum dif
ferential pressure is required for complete opening. A special version (HP00)
which opens the valve without differential pressure is available for gas and
vacuum applications. Various diaphragm material combinations are available
depending on the application. The range of housings includes brass, stain
less steel and gunmetal. Dezincification-resistant brass is available for other
markets. To reduce power consumption in operation, coils with Kick and Drop
electronics assembly (double coil technology) are available.
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 1 Type 2513
Cable plug,
form A according to DIN EN 175301-803
Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 2 Type 1087
Timer, form A according to DIN EN 175301-803


1.  General technical data
Product properties
Dimensions    Detailed infomation can be found in chapter"5.Dimensions"on page 6.
Material
Seal    NBR,FKM,EPDM
Body    Brass acc.to DINEN50930-6
   Stainless steel 1.4408
   Gunmetal(extemal thread)DN 10..DN 20
Coil    Polyamide,epoxy (insulation classH)
lnner part of valve    Brass body:Brass,stainless steel and PPS
   Stainless steel body:Stainless steel and PPS
   Gunmetal body:Stainless steel and PPS(external threadDN 10...DN 20
Orifice    Standard:DN 10..DN40
   HP00:DN 13….DN20
Circuit function    Detailed infomation can be found in chapter"2.Circuit functions"on page 4.
Performance data
Duty cycle    100%continuous rating;KD coil max.rating 6 circuit switches/minute
Switching timelAC/DC
DN 10..DN 13    Opening:10.….100 ms
   Ciosing:100...200 ms
   Opening:200...300 ms
   Ciosing:400...700 ms
   Opening:30400 ms
   Closing:800...1400 ms
DN 20
DN 25..DN 40
Electrical data
Operating voltage    Standard:024/DC,024/50,230/50,110/50,120/60
   HP00:024/DC,24V(50..60 Hz),230V(50...60 Hz)
Power consumption    Depending on orifice and coil size
   For detailed infomation,see "6.Performance specifications"on page 11
Voltage toleranoe    ±10%
Medium data
Operating medium
NBR    Neutral fluids,water,hydraulic oil,oil without additives
FKM    Per-solutions,hot oils with additives
EPDM    Oil and fat-free fluids and gases
Medium temperature
NBR    -10C….+80℃
FKM    0℃…+90Cwith polyamide coil
   0℃.…+120℃with epoxy coil
EPDM    -30°C…+90℃ with polyamide coil
   -30°C….+100℃ withepoxy coil
EPDM with dninking water approval
according to UBA		    Application range of cold and hot water up to+60°℃
Viscosity    Max.21mm²/s
Process/Port connection &communication
Bectrical connection    Tag connector acc.to DINEN175301-803 fom A
   (see"8.4.Ordering chartaccessories"on page 29
Approvals and certificates
Degree of protection    IP65IP65 with cable plug Type 2518▶
   4XNEMA with stainless steel version and cableplug Type 2509▶
Environment and installation
Installation    As required,preferably with actuator upright
Ambient temperature    Max.+55℃
.)Measrement at 6 bar and+20°℃at the wade oufet,openg pessre buid-up0...90%,dosing pressue educion 10...10%

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 3

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 4

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 5

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 6

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 7

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 8

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 9

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 10

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 11

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 12

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 13

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 14

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 15

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 16

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 17

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 18

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 19

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 20

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 21

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 22

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 23

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 24

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 25

Servo-assisted 2/2-way Diaphragm Valve with Steel Material and Brass Solenoid Valve 26
