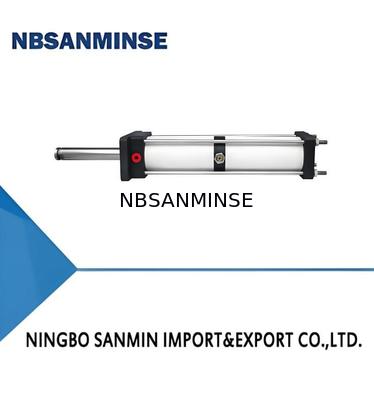

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Büyük resim :  QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: NBSANMINSE
Sertifika: ISO9001
Model Number: QGT
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: KUTU
Teslim süresi: 5-30 gün
Ödeme koşulları: L/C,T/T
Yetenek temini: 10000 pcs
İletişim

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption

Açıklama
Yastıklama açısı: 2~8 (derece) Orta ve Ortam Sıcaklığı: -5~+60(°C)
Strok S: 125(mm) P=6bar'da Maksimum Darbe Çalışması: 31,6(≥N ·m)
Malzeme: alüminyum P=6bar'da Darbe Frekansı: 60 (kez/dak)
Vurgulamak:

QGT Model Pneumatic Air Cylinder

,

2~8 Degrees Cushioning Angle Pneumatic Air Cylinder

,

-5~+60℃ Operating Temperature Pneumatic Air Cylinder

I. Features
  1. Utilizes compressed air to generate large impact force, suitable for multiple applications such as printing, blanking, stamping, and assembly.
  2. Simple structure, low air consumption, and large impact force.
II. Model
QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 0
① Cylinder Model
② Mounting Type (See Next Page)
③ Cylinder Bore (See Below Table)
④ Stroke (See Below Table)
III. Main Technical Parameters of Cylinder
Cylinder Bore(mm) Φ63 Φ80 Φ100 Φ125
Working Pressure(bar) 2~8
Working Medium Dried compressed air with oilmist,filtered to remove water
Medium and Ambient Temperature(℃) -5~+60
Stroke S(mm) 125  160  200  250
Maximum Impact Work at P=6bar(≥N ·m) 31.6  69  143  294
Stroke Corresponding to Maximum Impact Work(mm) 60  80  110  132
Impact Frequency at P=6bar (times/min) 60  50  40  30

 Note: The maximum impact work is at 0.55 S of the stroke in the table.

IV. Graphic Symbols and Mounting Types

SD (Basic Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 1

J (Axial Foot Mount Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 2

F (Rear Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 3

FQ (Front Flange Type)

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 4

QGT Air Cylinder Large impact force generated by compressed air is applicable to printing blanking punching small air consumption 5
