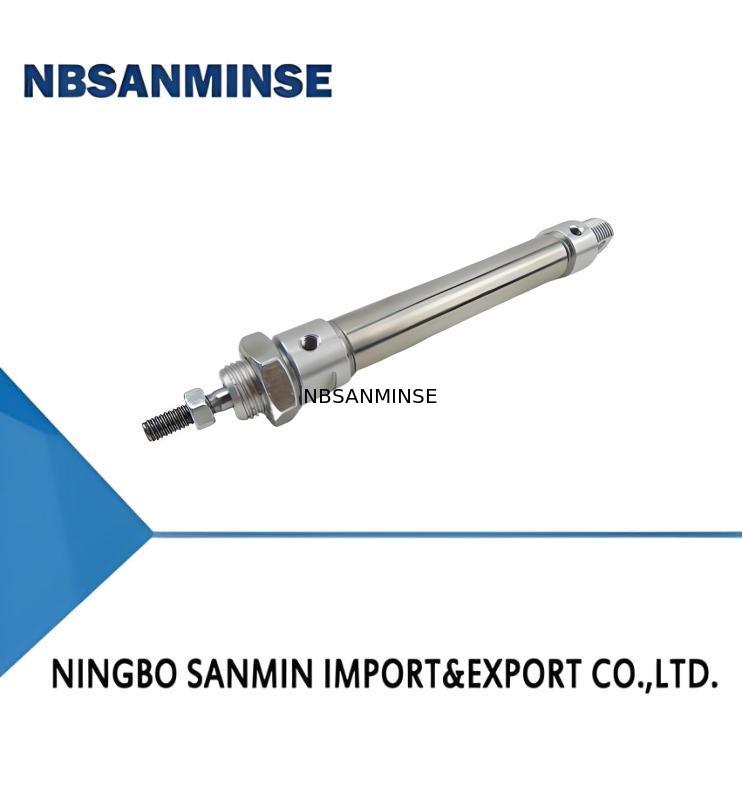

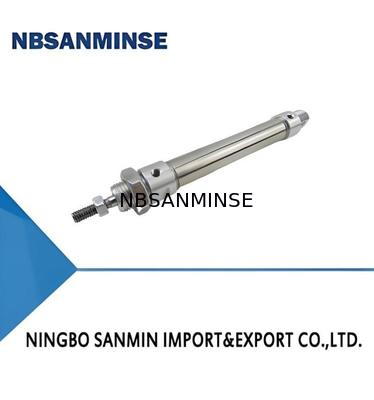

10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar

10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar
10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar

Büyük resim :  10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: NBSANMINSE
Sertifika: ISO9001
Model numarası: 10Y-1
Ödeme & teslimat koşulları:
Min sipariş miktarı: 10 adet
Fiyat: Anlaşılabilir
Ambalaj bilgileri: KUTU
Teslim süresi: 5-30 gün
Ödeme koşulları: L/C,T/T
Yetenek temini: 10000 pcs
İletişim

10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar

Açıklama
Yastıklama Formu: Yastık yastığı Kanıt baskısı: 15(bar)
Çalışma Sıcaklığı: -25 ～ +80(°C) Yağ Temini: Gerekli değil
Çalışma hızı: 50~500(mm/sn) Malzeme: Paslanmaz çelik
Vurgulamak:

10Y-1 Model Pneumatic Air Cylinder

,

15 Bar Proof Pressure Air Cylinder

,

Cushion Pad Cushioning Pneumatic Cylinder

I. Features:

1.Parts are made of aluminum alloy, featuring light weight and small volume. The inner hole of the cylinder barrel is hard anodized, especially wear-resistant, with a long service life.

2.Installation dimensions comply with ISO (International Standard).

3.Oil-free (oil-lubricated is also available) lubrication, avoiding oil-gas pollution, and the oil mist lubricator can be omitted.

II. Model

10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar 0

① Cylinder Model See Cylinder Performance Table for details
② Installation Form See the diagram on the next page for details
⑤ Rear Cover Form See the diagram on the next page for details
Code S P K
Name Basic Type Axial Port FD-13RV
⑥ Valve Operation Mode A:Push Type when Energized
B:Pull Type when Energized
⑦ Valve Operating Voltage 5:AC220V 50HZ
8:DC24V
⑧ Switch Model See Switch Performance Table for details
Code K H
Name FD-03R FD-13RV
⑨ Number of Switches
⑩ Rod End Connection Accessories See the diagram on the next page for details

III. Graphical Symbols and Appearance

10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar 1

IV. Main Technical Parameters

1.Main Technical Parameters of Cylinder

Variety Standard Type With Switch Type With Valve Type With Vave and Switch Type
Model 10Y-1 10Y-1R 10Y-1V 10Y-1K
Cylinder Bore(mm) φ8,Φ10,Φ12,Φ16,Φ20,φ25,中32,Φ40,φ50 中20,Φ25,中32,中40,φ50
Maximum Stroke(mm) Φ8,Φ10:200;Φ12,Φ16:300;Φ20,Φ25:400;φ32:500;Φ40:600;φ50:800
Maximum Stroke(mm) No Limit 37  No Limit 37
Operating Pressure Range (bar) Φ8~16:1～10;Φ20~φ50:0.5～10 1.5～10
Proof Pressure (bar) 15
Operating Speed Range(mm/s) Φ8~16:50～500;20~50:50～700 50~500
Operating Temperature Range(℃) -25～+80(under non-freezing conditions)
Working Medium Dry and Clean Compressed Air
Cushioning Form Cushion Pad
Oil Supply Not Required(Oil-lubricatedis Also Available)

2. Main Technical Parameters of Switch

Model FD-03R FD-13RV
Operating Voltage Range 5~240V DC/AC 5~240V DC/AC
Operating Current Range 100mA(max) 500mA
Maximum Contact Capacity 10W(max) 10W(max)
Leakage Current 0  None
Indicator Light Red LED Yellow LED
Operation Time
Recovery Time
Impact Resistance 30G 30G

Note:

① Switch FD-03R is applicable to cylinders with bore Φ8～Φ50.

② FD-13RV is applicable to cylinders with bore Φ8～Φ50.

③ Please refer to the relevant table of valves in the 10Y-2 series cylinders for the main technical parameters of the valve.
